If you are involved in engineering, plumbing, or any field that requires the use of pumps, then you may have heard of the term "pump head". Pump head is a crucial factor in determining the efficiency and performance of a pump. In this article, we will delve deeper into what pump head is, how it affects pump performance, and how to calculate it.

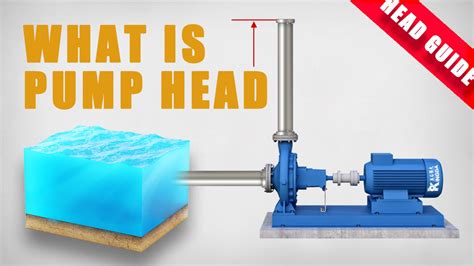

What is Pump Head?
Pump head refers to the pressure at the inlet and outlet of a pump. It is the measure of the energy required by a pump to move a fluid from the inlet to the outlet against resistance. The resistance can be caused by friction, elevation, or any other factors that create a hindrance to flow. The pump head is expressed in units of height, such as feet or meters, and is a critical factor in determining the pump's efficiency and performance.
When a fluid is pumped, it encounters resistance from the pipes, valves, and other components in the system. The resistance causes a drop in pressure, which is referred to as the head loss. The pump must be able to overcome this head loss to maintain a constant flow rate. The pump head is the sum of the head loss and the pressure required at the outlet to achieve the desired flow rate.
Types of Pump Head
There are two types of pump head: static head and dynamic head. Static head is the pressure required to lift the fluid from the inlet to the outlet against the force of gravity. It is determined by the distance between the inlet and outlet and the density of the fluid. Dynamic head, on the other hand, is the pressure required to overcome the resistance caused by the friction and other factors in the system. It is determined by the flow rate, velocity, and the characteristics of the pipes and valves.
How Pump Head Affects Pump Performance
Pump head has a significant impact on the performance and efficiency of a pump. The higher the pump head, the more energy the pump requires to move the fluid through the system. This results in higher energy consumption and operating costs. On the other hand, a lower pump head means that the pump requires less energy to operate, resulting in lower energy consumption and operating costs.
Pump head also affects the flow rate of the fluid. The higher the pump head, the lower the flow rate, and vice versa. This means that if the system requires a high flow rate, the pump must be able to provide a higher pump head. However, if the system requires a lower flow rate, the pump can operate at a lower pump head, resulting in lower energy consumption and operating costs.
How to Calculate Pump Head
To calculate the pump head, you need to know the flow rate, the density of the fluid, the pipe diameter, and the characteristics of the system components. The pump head is calculated using the following formula:
Pump Head = Static Head + Dynamic Head
The static head is calculated by multiplying the distance between the inlet and outlet by the density of the fluid and the acceleration due to gravity. The dynamic head is calculated by multiplying the friction factor, pipe length, and the square of the velocity of the fluid, and dividing the result by twice the diameter of the pipe.
It is important to note that the pump head varies with the flow rate. Therefore, it is essential to calculate the pump head at the desired flow rate to ensure that the pump can provide the required flow rate without exceeding the maximum pump head.
Overall, pump head is a critical factor in determining the performance and efficiency of a pump. Understanding pump head and how to calculate it can help you select the right pump for your system and optimize its performance.
